機床特點 Features of machine tools
1. 數控立式車床是一種性能良好、工藝范圍廣泛、生產效率高的先進設備，適用于各行業的機械加工，可用于內外圓柱面、
內外圓錐面、端面、切槽、圓弧及各種曲線面和螺紋的粗、精加工。
2. 機床的主傳動分為交流和直流兩種電機驅動。交流經 16 級主軸變速機構，直流經兩檔變速機構，實現工作臺的轉速范圍。
3. 工作臺主軸采用了高精度可調徑向間隙雙列短圓柱滾子軸承定心，工作臺采用恒流靜壓導軌，使工作臺具有旋轉精度高、
承載能力大、熱變形小的特點。
4. 根據用戶需要機床可采用恒溫冷卻裝置，可設有獨立液壓站系統，能保證機床加工精度和各項技術指標穩定性。
5. 立柱、橫梁、滑枕等導軌面采用淬火、磨削、人工合研，接觸面好，精度高。
6. 機床進給采用伺服電機、滾珠絲杠傳動，橫梁配有封閉護罩，增加了機床的安全性、宜人性。
7. 數控系統根據用戶需要，可選用進口或國產配置。
8. 選擇配置：電動刀臺、半封閉罩殼、冷卻排屑裝置和兩檔無級調速。

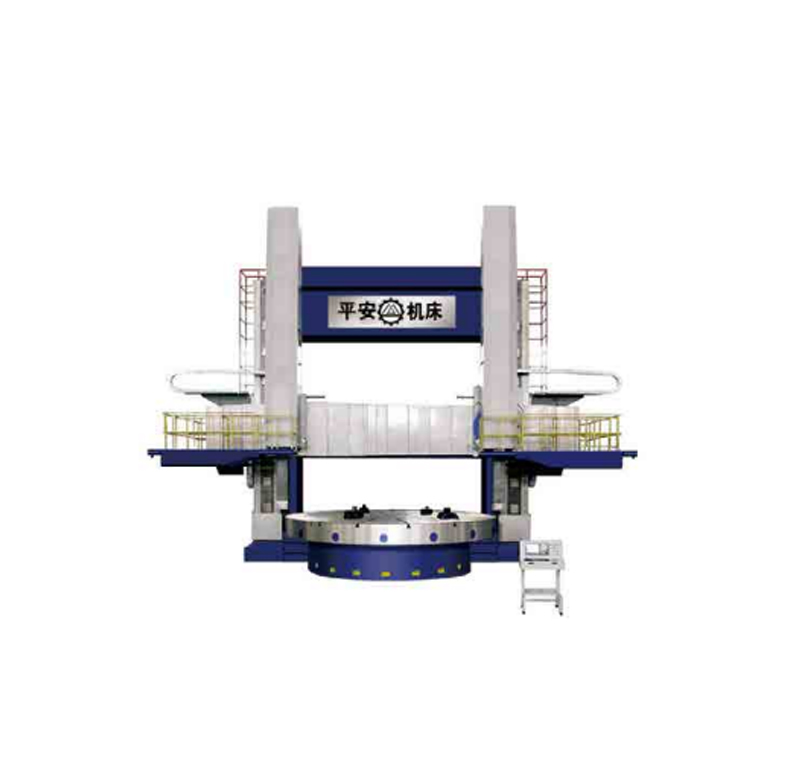

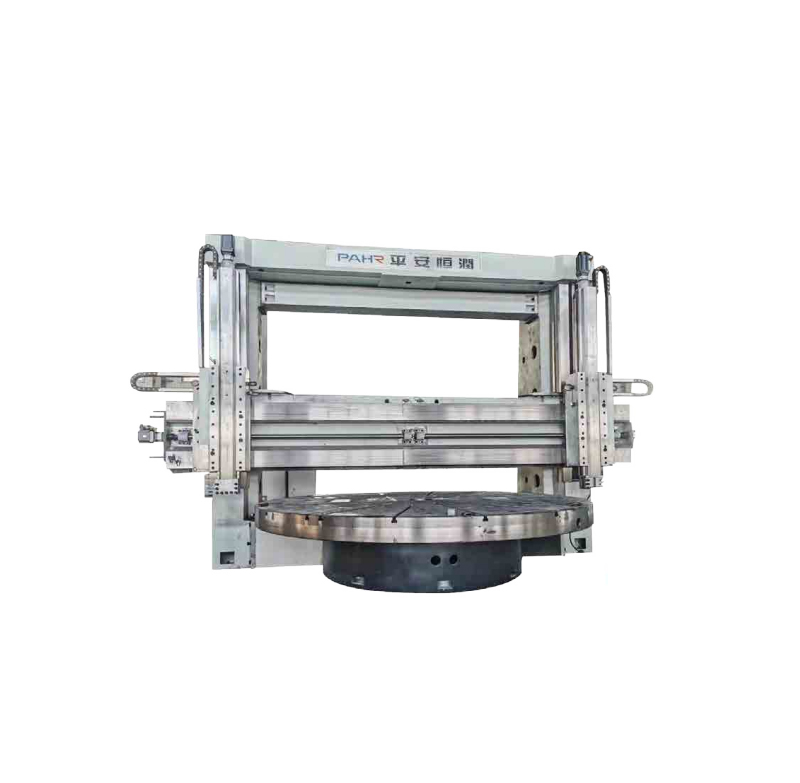

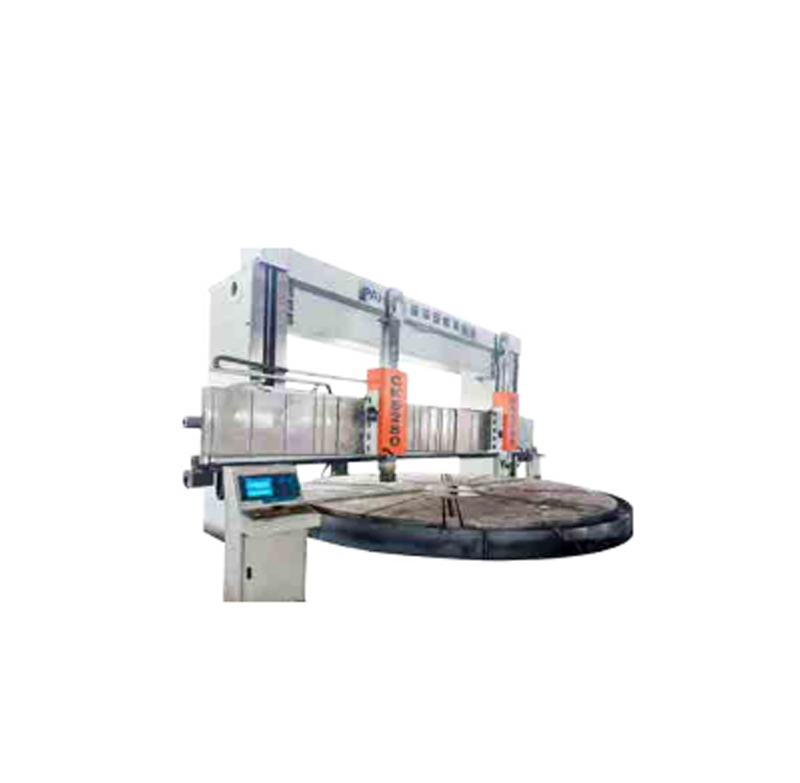

1. CNC vertical lathe is an advanced equipment with good performance, wide range of technology and high production efficiency. It is suitable for mechanical processing of various industries, and can be used for internal and external cylindrical surface, internal and external cone surface, end face, grooving Rough and finish machining of circular arc, curved surface and thread.
2. The main drive of the machine tool is divided into AC and DC motor drives. AC through 16 level spindle speed change mechanism, DC through two speed change mechanism, to achieve the speed range of the worktable.
3. High precision adjustable radial clearance double row short cylindrical roller bearing is used for the spindle of the worktable, and the constant current hydrostatic guide rail is used for the worktable, which makes the worktable have the characteristics of high rotation accuracy, large bearing capacity and small thermal deformation.
4. According to the needs of users, the machine tool can be equipped with constant temperature cooling device and independent hydraulic station system, which can ensure the machining accuracy and the stability of various technical indexes.
5. The guide rail surfaces of column, beam and RAM are quenched, ground and manually grinded, with good contact surface and high precision.
6. Servo motor and ball screw are used to drive the machine tool, and the beam is equipped with a closed shield, which increases the safety and amenity of the machine tool.
7. The CNC system can be imported or domestic configuration according to the needs of users.
8. Optional configuration: electric tool table, semi enclosed cover, cooling chip removal device and two-speed stepless speed regulation.
